Case Skid Steer Warning Light Symbols Explained
Every warning light on a Case skid steer instrument panel - what it means and what to do before damage is done.
Case Skid Steer Warning Light Reference

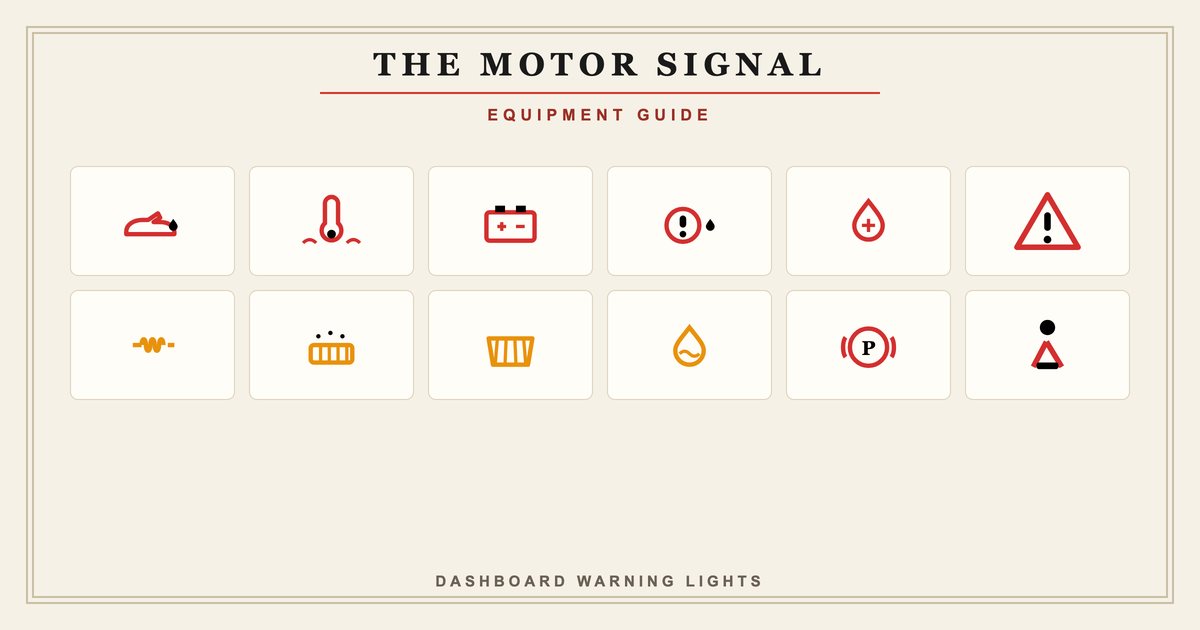

The instrument panel groups lights by urgency. Red indicators signal a stop-now condition - continuing to run risks permanent damage. Amber indicators warn of a developing problem that needs attention within the shift or day. Green and blue lights confirm a system is active. The 16 most common indicators on Case SR and SV series loaders are listed below.
Engine Oil Pressure
Engine oil pressure has dropped below the safe operating threshold. Continuing to run risks catastrophic bearing and crankshaft damage. Stop the engine immediately. Check oil level on the dipstick. Do not restart until pressure is confirmed and the cause identified.
Engine Coolant Temperature
Coolant temperature is above the safe operating limit. The engine is overheating. Shut down, let the engine cool, and check coolant level, hoses, and radiator for blockages or leaks before restarting.
Battery / Charging System
The alternator is not maintaining charge or battery voltage has dropped below the minimum. The machine is running on battery reserve only. Check alternator belt tension and connections. Continued operation will drain the battery and cause a no-start condition.
Hydraulic Charge Pressure Low
Charge pressure in the hydraulic system has fallen below the minimum. Loss of drive or loader function is likely. Stop operation immediately. Check hydraulic fluid level and inspect for leaks. Do not force drive or loader controls.
Hydraulic Oil Temperature
Hydraulic oil has exceeded the maximum safe temperature. Overheated oil loses its lubricating properties and can damage seals and pumps. Park on level ground, lower the bucket, and let the system idle to cool. Check for a blocked cooler or low oil level.
Stop - Master Warning
A critical system fault has been detected. This light accompanies one or more specific fault indicators and signals a stop-now condition. Stop safely, identify which companion light is active, and address that fault before resuming operation.
Glow Plug / Preheat
The engine glow plugs are preheating the combustion chambers for a cold start. On some models, a steady amber after startup indicates a glow plug fault. During startup: wait for the light to go out before cranking. If it stays on during operation, inspect the glow plug circuit.
Engine Malfunction (MIL)
The engine management system has logged a fault code. Performance may be reduced. On Tier 4 models this often relates to the emissions system. Continue with caution and read fault codes with a diagnostic tool as soon as possible. Persistent faults require dealer diagnosis.
DPF / Regeneration Required
The diesel particulate filter is loaded with soot and needs a regeneration cycle to burn it off. Common on Tier 4 SR and SV models. Allow passive regeneration by running the machine under load. If the light persists, initiate a parked regeneration from the operator menu.
Air Filter Restriction
The air filter element is clogged and restricting airflow to the engine, which reduces power and increases fuel consumption. Inspect and clean or replace the air filter element. Operating with a restricted filter can cause turbocharger and engine wear.
Hydraulic Filter Restriction
The hydraulic return filter is blocked. Contaminated oil is bypassing the filter element, which puts the entire hydraulic circuit at risk. Replace the hydraulic filter at the next available opportunity. Check oil condition - if milky or gritty, change the oil as well.
Water in Fuel
The water separator in the fuel system has detected water contamination. Water in diesel causes injector damage and misfires. Drain the water separator bowl immediately. If water contamination is heavy, drain and flush the fuel tank before restarting.
Low Fuel Level
Fuel level has dropped to the reserve threshold. Running a diesel skid steer dry can introduce air into the fuel system, requiring a bleed procedure to restart. Refuel as soon as possible. Do not allow the tank to run empty.
Parking Brake Engaged
The parking brake is active. The machine will not travel while this indicator is on. Release the parking brake before attempting to drive. Attempting to move with the brake engaged causes excessive wear on the brake system.
Seat Belt / Operator Presence
The seat belt is not fastened or the operator presence sensor is not detecting a seated operator. Loader and drive functions may be locked out. Fasten the seat belt before operating. The machine will not release all functions until the operator is detected in the seat with the belt buckled.
General Caution
A non-critical system fault is present. This indicator often appears alongside a more specific amber light to confirm the fault category. Identify any companion indicator lights that are also active. Consult the operator manual for the specific fault and required service interval.
Red vs. Amber - How to Respond
Case skid steers follow a clear two-tier alert system. Red means stop - shut the machine down within seconds, lower the attachment to the ground, and do not restart until the root cause is fixed. The oil pressure and coolant temperature lights are the two most consequential red indicators: ignoring either can destroy an engine in minutes.
Amber means act within the shift. Hydraulic filter restriction, air filter blockage, and DPF loading are typical amber warnings. None of these require an immediate shutdown, but running through an entire day on an amber warning accelerates wear and risks a red-level failure later. Check the fluid levels and filter condition at the next natural stop.
A flashing light, regardless of color, always indicates a more severe condition than the same steady light. If an amber light starts flashing during operation, treat it as red and shut down safely.
Tier 4 Emissions Warnings on Newer Case Loaders
Case SR130 through SV340 models built after 2013 use Tier 4 Final engines equipped with a diesel particulate filter (DPF) and, on larger displacement engines, a selective catalytic reduction (SCR) system with DEF fluid. These add two new light categories that older operators may not recognize.
The DPF regeneration light is the most commonly misunderstood indicator on modern Case loaders. It does not mean the machine is broken - it means the filter needs a burn cycle. Passive regeneration happens automatically at operating temperature under load. If the machine spends long periods idling or doing light work, passive regen may not complete and a parked regeneration (accessible from the instrument cluster menu) is required. Ignoring regen requests over multiple shifts leads to a DPF ash loading fault that requires dealer service to clear.
The DEF / AdBlue level warning appears when the DEF tank drops below roughly 10 percent. Case Tier 4 SCR systems will progressively derate engine power if DEF runs out entirely - first to 75 percent, then lower - to meet emissions regulations. Refill the DEF tank with ISO 22241-grade fluid only.
Your questions answered
What does the red light with an exclamation mark mean on a Case skid steer?
That is the master warning light, signaling a critical fault that requires immediate shutdown. It will always appear alongside a more specific indicator - oil pressure, coolant temperature, or hydraulic charge pressure are the most common companions. Identify the secondary light to determine the exact cause before restarting.
Can I keep working when the DPF light comes on?
Yes, for a limited time. The DPF regen light is an amber caution, not a red stop. You can continue operating while passive regeneration occurs, but if the light does not clear after running under load for 20 to 30 minutes, park the machine in a clear area and run a parked regeneration cycle. Ignoring the light across multiple shifts risks a forced engine derate and a dealer-level DPF clean-out.
Why won't my Case skid steer move even though the engine is running?
Check whether the parking brake indicator or the seat belt/operator presence light is active. Case loaders lock out drive and loader functions until the operator is in the seat, the belt is fastened, and the parking brake is released. If those lights are clear and the machine still won't move, a hydraulic charge pressure fault or a drive system fault code may be present - connect a diagnostic tool to read any stored faults.
How often should I check the hydraulic oil on a Case skid steer?
Check the hydraulic oil level daily before starting work. Case recommends changing the hydraulic oil and filter at the intervals listed in the operator manual for your specific model - typically every 1000 hours for the oil and 500 hours for the filter under normal conditions. Hard use in dusty or contaminated environments calls for more frequent changes. A hydraulic filter restriction warning before the scheduled interval signals accelerated contamination and warrants an early oil sample or change.
What causes the water-in-fuel light to come on?
The water separator bowl in the fuel system has collected enough water to trigger the sensor. Water enters diesel fuel through condensation in storage tanks, contaminated fuel supplies, or damaged fuel caps. Drain the water separator bowl immediately using the drain valve at the base of the bowl. If the light returns quickly after draining, inspect the fuel source and the tank for contamination.
