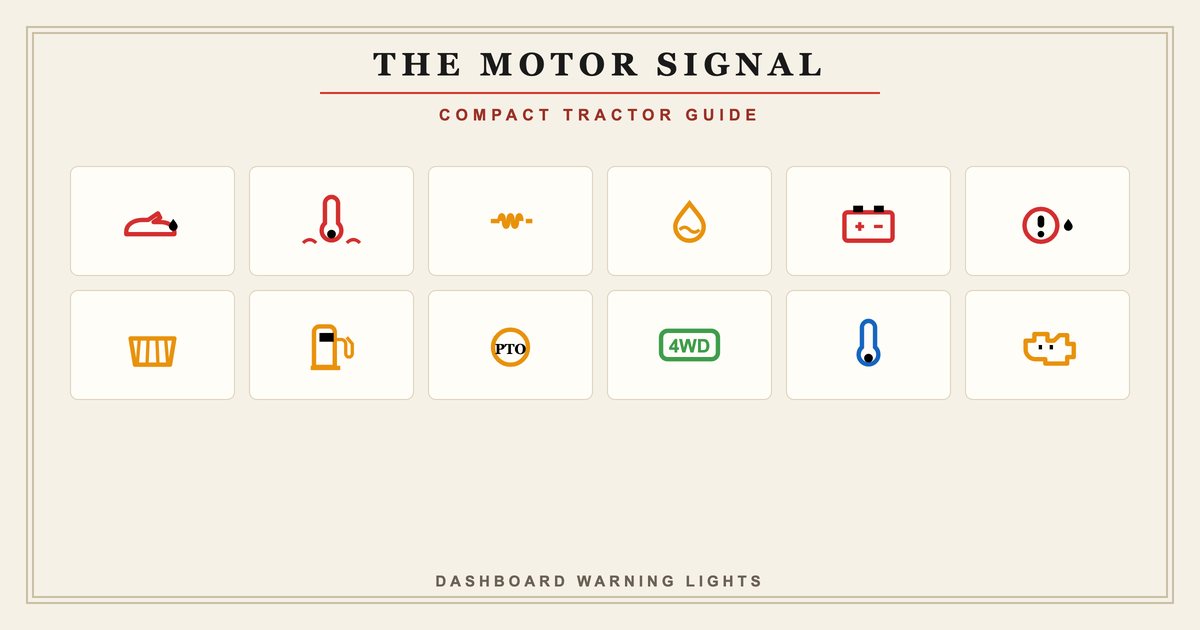

Kioti CK3510 Dashboard Warning Lights: Full Symbol Guide
The CK3510 instrument cluster decoded - which lights to stop for, which to monitor, and how to avoid the most common cold-start and hydraulic mistakes.
Red Warning Lights - Shutdown Required
Red warning lights on the CK3510 cluster require a controlled stop. Lower any implement or loader bucket to the ground, disengage the PTO, find a safe place to park, and shut the engine off. Do not leave the tractor running with a red light active while you walk to get tools - the damage compounds quickly with some faults.
Engine Oil Pressure
Engine oil pressure has dropped below the minimum safe level. Internal components are at risk of contact damage within moments of this light appearing. Shut the engine off immediately. Check the oil level with the dipstick - do not restart before investigating. Look for leaks under the tractor.
High Coolant Temperature
The engine is overheating. Common causes on the CK3510 include a clogged radiator screen (especially in tall grass or leaf debris), low coolant level, or a failed thermostat. Park in shade, let the engine idle for 60 seconds, then shut down. Do not open the radiator cap until the system is completely cool. Check the front screen for debris before adding coolant.
Brake System / Parking Brake
A brake circuit fault or low brake fluid level has been detected. On the CK3510, this can also illuminate when the parking brake is applied. Verify the parking brake is fully released. If the light persists during normal operation, check brake fluid and inspect for leaks before continuing.
Amber Warning Lights - Service Before Next Use
Amber lights on the CK3510 are not emergencies, but they are not optional either. Each one flags a real maintenance need that should be addressed before the tractor goes back to work. Compact tractors are often used hard and stored for weeks between sessions - an amber light that looks minor in May can become a breakdown in July.
Water in Fuel
The fuel filter/water separator has collected enough water to trip the sensor. Water in the fuel system reaches the injection pump and injectors, causing rapid wear and potential hydrolocking. Stop work at the end of the current task. Drain the water separator bowl - it is typically located on the fuel filter assembly near the engine. Replace the filter element if the separator has been running with water for some time.
Air Filter Restriction
The air filter is clogged and restricting airflow to the engine. Common in dusty or leaf-laden conditions. A restricted filter causes black exhaust smoke and a noticeable loss of power under load. Inspect the air filter element. On the CK3510 the filter is accessible without tools. Clean a dry-element filter with compressed air blown from the inside out - do not wash it. Replace if damaged or if cleaning does not restore airflow.
Battery / Charging System
The alternator is not charging the battery, or voltage has dropped below threshold. Common causes include a loose drive belt, corroded battery terminals, or a failing alternator. Check the alternator belt tension and the battery terminal connections first - both are quick owner checks. If the belt and terminals are sound, test the alternator output with a multimeter or have it checked at a dealer.
Hydraulic System Warning
Hydraulic pressure or temperature is outside normal range. On the CK3510 this can affect the loader lift circuit, the 3-point hitch, or the power steering, all of which share the same hydraulic system. Check the hydraulic fluid level in the transmission/hydraulic reservoir (the CK3510 uses a combined hydraulic-transmission fluid sump). Top up with the correct fluid if low. If fluid is full, inspect for leaks around hydraulic hose fittings and cylinders.
Hydraulic Oil Temperature
Hydraulic oil temperature has exceeded the safe operating range. This can happen during extended loader work in warm conditions, especially if the fluid level is low. Stop loader or implement work and let the engine idle for 10-15 minutes to allow the fluid to cool. Check the fluid level when cool. Consider adding shade or reducing cycle times in very hot weather.
Fuel Filter Service
The primary fuel filter is due for replacement or is showing increased restriction. Replace the fuel filter element. On diesel tractors stored seasonally, replacing the filter at the start of each season is good practice regardless of whether the light appears.
Engine Oil Temperature
Engine oil temperature is elevated above normal. Often seen after sustained high-load work in hot ambient conditions. Reduce the workload and let the engine idle for a few minutes. Check the oil level and inspect the cooling system. If the light persists at normal load, have the thermostat and oil cooler inspected.
Pre-Start: Glow Plug and Cold Weather Operation
The glow plug preheat cycle is the single most misunderstood indicator on the CK3510 - and skipping it is one of the most common ways owners shorten engine life. When you turn the key to the 'on' position in cool weather, an orange coil or spiral symbol lights up. This is the system heating the prechambers in each cylinder. Wait for this light to go out before cranking. The wait ranges from 3 seconds in mild conditions to 15-20 seconds on a cold morning below 5 C.
Forcing a cold start before preheat completes puts raw diesel into unheated cylinders - it does not fully combust, it dilutes the oil on the cylinder walls, and it deposits unburned carbon on the injectors. Over dozens of cold starts, this accumulates into real mechanical wear. On companion models in the Kioti lineup, the same cold-start discipline applies - you can find similar notes in the Kioti tractor warning lights guide.
Glow Plug / Preheat
Glow plugs are actively heating the combustion chambers before a cold start. The light stays on while heating and extinguishes when the engine is ready to crank. Wait for the light to go out before turning the key to the start position. If the light stays on longer than 25 seconds, one or more glow plugs may be failing.
Cold Coolant / Warm-Up
Engine coolant temperature is below normal operating range. The engine is still warming up. Normal during the first few minutes after a cold start. Avoid full-load work until this light goes out and the temperature gauge reaches the normal operating band.
PTO, 4WD, and Implement Status Indicators
The CK3510 uses several green and blue indicator lights that confirm active operating modes. These are not warnings - they tell you what is currently engaged. Misreading a green PTO indicator as a fault light and then turning the PTO off unexpectedly mid-cut is a common new-owner mistake on compact tractors.
The 4WD light confirms that four-wheel drive is engaged. The CK3510 uses a hydraulically engaged front axle with a dash switch. In tight turns at full 4WD lock, the front tires scrub on firm surfaces - this is normal, but repeatedly doing it on hard pavement accelerates front tire wear. Disengage 4WD for road transport. The Kubota dashboard lights article covers similar compact-tractor indicator patterns if you manage a mixed fleet.
For operators running error codes through the diagnostic connector, the separate Kioti tractor error codes guide covers the CK-series fault code list in detail.
PTO Engaged
The rear PTO shaft is rotating. This is a status indicator, not a fault. Normal when operating a mower, tiller, or other PTO-driven implement. Disengage before making tight turns with mowers, and always disengage before road travel.
4WD Engaged
Four-wheel drive is active. The front axle is receiving power from the drivetrain. Normal for field work or traction-limited conditions. Disengage on firm surfaces to avoid tire scrub, and always disengage for road transport above a walking pace.
Differential Lock
The rear differential is locked, sending equal power to both rear wheels regardless of traction. Common when stuck or working on uneven ground. Normal during use. Release the diff lock before turning - driving through a turn with the diff locked causes severe driveline stress and tire scrub.
Parking Brake Engaged
The parking brake is applied. Status indicator. On slopes, always engage the parking brake and lower the loader or implement before leaving the seat.
Low Fuel and Service Interval Reminders
The CK3510 does not have an extensive service-interval warning system like some larger agricultural tractors, but the hour meter on the dash is the key maintenance reference. Kioti's service schedule for the CK3510 calls for the first oil and filter change at 50 hours, then every 100 hours thereafter. The hydraulic/transmission fluid change is scheduled at 200 hours. Running a compact tractor past these intervals is one of the most common ways compact tractor engines age prematurely - they work hard for their displacement and depend on fresh oil more than a larger, lower-stressed engine.
The New Holland dashboard symbols guide covers similar service indicator patterns on competing compact tractor lines.
Low Fuel
Fuel level in the tank is low. On the CK3510, the amber low-fuel light typically triggers with roughly 3-4 liters remaining in the 26-liter tank. Refuel at the next opportunity. Avoid running a diesel tank dry - it introduces air into the fuel lines and requires bleeding the system before the engine will restart.
Service Interval / Hour Meter Alert
A scheduled maintenance interval has been reached based on engine hours. Perform the due service - oil and filter, air filter inspection, or hydraulic fluid change depending on the interval. Log the hour count and reset the indicator after completing the service.
Check Engine / Engine Fault
The engine management system has detected a fault. On the CK3510 this can indicate an injector issue, an emissions system fault, or a sensor out of range. Note when the light appeared and what the tractor was doing. Have a Kioti dealer read the fault code with a diagnostic tool - these faults do not display a code on the dash without a scanner.
Seat Belt Reminder
The seat belt is not fastened. On some CK3510 configurations the seat sensor interacts with this indicator. Fasten the seat belt before moving. On tractors equipped with ROPS (Roll-Over Protection Structure), the seat belt is the primary protection in an overturn - it must be worn.
Your questions answered
Why won't my Kioti CK3510 start in cold weather?
The most common cause is not waiting for the glow plug preheat cycle to complete. Turn the key to the 'on' position and wait for the glow plug symbol - a coil or spiral shape - to go out before cranking. In very cold conditions this can take 15-20 seconds. If the engine cranks but does not fire after proper preheat, check fuel level and look for water in the separator bowl.
What does the water-in-fuel light mean on the CK3510?
Water has collected in the fuel filter/water separator bowl and needs to be drained. Find the separator (typically on the fuel filter assembly near the front of the engine), place a small container underneath, and open the drain valve at the bottom of the bowl until only clean fuel comes out. Replace the filter element if the separator has been running with significant water contamination.
Can I drive the CK3510 with an amber warning light on?
Most amber lights allow you to finish a task and then park for service - they are not immediate shutdowns. Exceptions are hydraulic system faults when you have a heavy loader bucket raised, and brake system warnings. For those, lower any load to the ground before continuing. Never carry amber lights across multiple sessions without investigating the cause.
What fluid does the CK3510 use for hydraulics?
The CK3510 uses a combined hydraulic-transmission sump. Kioti specifies a UTTO (Universal Tractor Transmission Oil) fluid meeting specifications such as JD J20C or similar universal tractor hydraulic oil. Check the operator manual for the exact specification and capacity - using the wrong fluid can damage the transmission clutch packs and hydraulic pump.
How do I reset the service light on a Kioti CK3510?
On most CK3510 configurations the service interval reminder is tied to the hour meter. After completing the service, the reset procedure typically involves holding a button on the instrument cluster while turning the key on - the exact sequence is in the operator manual. Some early CK3510 models require the dealer's diagnostic tool to reset the interval counter.
