JCB Loader Dashboard Warning Lights and Symbols Explained

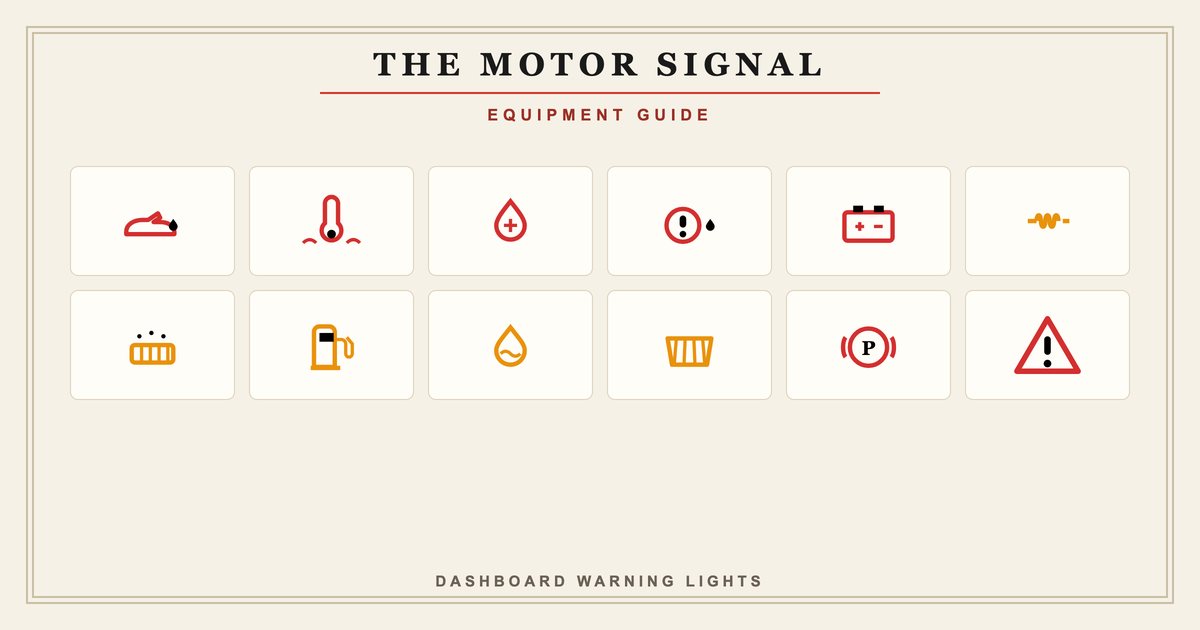

JCB arranges instrument warning lamps in a cluster beside or around the main LCD screen. Red lamps sit at the top of the priority stack - if one lights up, the machine must stop. Amber lamps sit below; they signal a developing fault that needs attention within the current shift or the next service interval. Green and blue lamps are status indicators: parking brake applied, work lights on, cold-start preheat active.

Some JCB models use a single master warning lamp (red) and a master caution lamp (amber) that light up alongside whichever individual indicator triggered the alert. If you see the master warning or caution glow without an obvious companion lamp, scroll through the LCD display - it will show a text fault description on most machines built after 2012.

On Stage V models (2019 onward) the display also logs active and stored faults, which your dealer can read with JCB ServiceMaster diagnostic software. For older mechanical clusters, the lamps listed below are your only real-time feedback.

Any red lamp on a JCB loader is a stop-immediately signal. Continuing to operate risks expensive engine or transmission damage within minutes. Shut down, investigate the cause, and do not restart until the fault is resolved or a qualified JCB technician has cleared the machine.

Amber lights on the JCB instrument panel flag conditions that are not yet critical but will become so if ignored. Most allow the machine to complete the immediate task or return to the yard safely - but the fault must be addressed before the next work shift. JCB loaders equipped with a Stage V engine are particularly reliant on clean air intake and aftertreatment systems, so the air filter and DPF lamps deserve prompt attention.

If you are operating a JCB loader and see the DPF regeneration lamp flash on, the machine is asking you to sustain a heavier load cycle to raise exhaust temperatures and burn off soot. If the duty cycle is too light for passive regen - common on short-haul site work - park in a clear area and initiate a stationary regeneration from the cab display. The process takes roughly 45 minutes. Repeated cancellations force a dealer-level forced regen using diagnostic equipment. For context on how DPF warnings work across other construction machines, the guide to Caterpillar warning lights covers the same aftertreatment logic in detail.

Not every lamp on a JCB dashboard signals a fault. Several green, blue, or amber indicators simply confirm that a system is engaged and working as intended. Seeing the parking brake lamp lit while stationary is correct; seeing it stay on once you pull away is the problem. The same applies to the preheat indicator - normal before a cold start, a fault flag if it lingers on a warm engine.

JCB loaders also share some indicator logic with other heavy equipment in the compact and mid-range sector. If you operate multiple brands on site, the overview of Case skid steer warning lights shows how a similar instrument cluster handles the same hydraulic and transmission indicators.

JCB's Stage V wheel loaders - including the current 427, 437, and 457 models - use a diesel particulate filter as part of their aftertreatment system. The DPF collects soot from combustion and periodically burns it off in a process called regeneration. Most regenerations happen automatically while the engine is under load and exhaust temperatures are high enough. Site work that involves a lot of idling, short travel runs, or light bucket cycles can prevent passive regen from completing.

When the DPF lamp illuminates steadily, the machine is requesting a higher-load operating cycle. A flashing lamp at a higher blink rate means passive regen has failed and a stationary regen is required. The procedure is initiated from the cab display menu: the engine runs at a set speed for roughly 45 minutes while the exhaust system reaches the temperature needed to oxidise accumulated soot. The machine must be parked on a flat surface well away from flammable material during this process.

Repeated cancellations or regen inhibits can fill the DPF beyond the self-clean threshold. At that point, only a dealer-performed forced regeneration using JCB ServiceMaster software can restore normal operation. Replacing a blocked DPF is a significant cost, so treating every regen request seriously is the most cost-effective approach. This aftertreatment logic is also common to other mid-size loaders - the article on Takeuchi warning lights explains how the same DPF system behaves on compact excavators in the same emissions tier.

Multiple warning lights appearing at start-up are usually caused by one of three things: a battery or charging fault (low voltage briefly triggers several sensors), a genuine multi-system problem, or a loose sensor connector. If the lights appear when you turn the key and then mostly extinguish after the engine fires, that is a normal lamp-check sequence - all lamps should illuminate briefly then go out.

If several red lamps stay on after the engine starts, do not move the machine. The most common culprits are low oil pressure after a cold soak (oil drains back from galleries overnight), a loose battery terminal causing low system voltage, or a coolant level drop that has allowed air into the sensor circuit. Check the basics first: oil level on the dipstick, coolant level in the header tank, battery terminals tight and clean.

A single red lamp accompanied by the master warning is the clearest fault signal JCB's system can give. Match the individual lamp to the list above, respond accordingly, and note any LCD fault code before shutting down. That code is the fastest route to an accurate repair diagnosis from your JCB dealer or service engineer. Operators who manage mixed fleets alongside loaders will recognise similar multi-lamp behaviour - the forklift dashboard warning lights guide covers how warehouse machines handle the same compound-fault situation.
