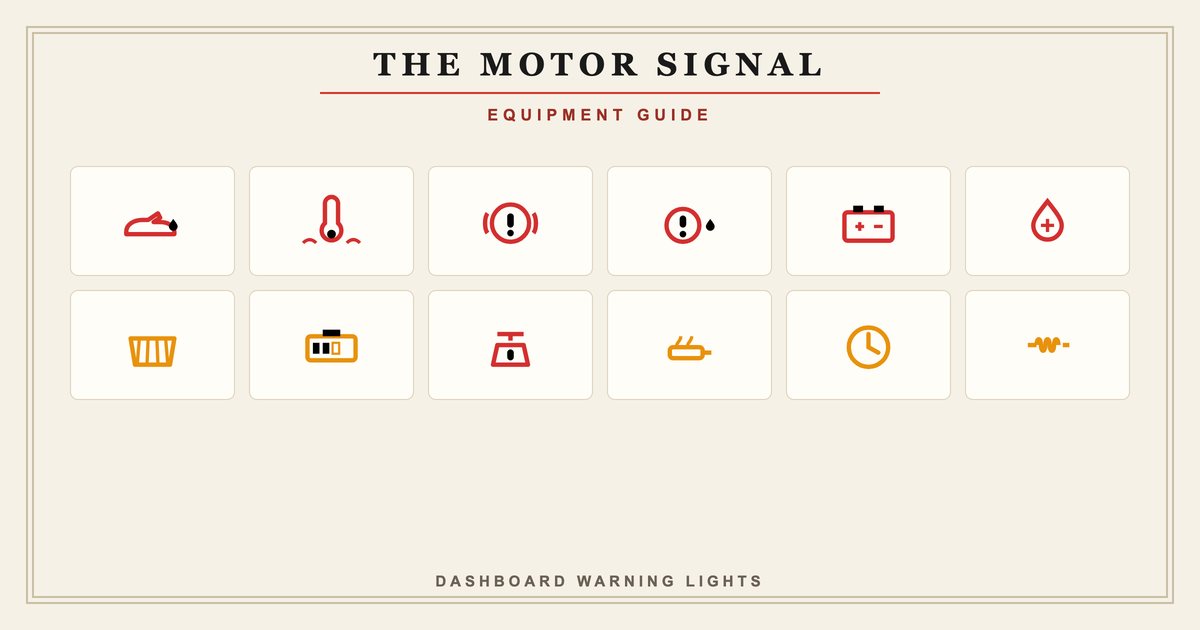

Forklift Dashboard Warning Lights: What Each Symbol Means

Red lights on a forklift instrument panel are hard stops. OSHA-compliant operating procedures require the operator to lower the forks to floor level, bring the truck to a safe area, and shut off power before leaving the seat. Never pass a red warning light off to the next shift without tagging the unit out of service.

Amber lights allow you to complete the current lift cycle and return the load safely before parking. Each one represents a real maintenance need - ignoring amber lights consistently leads to red lights and costly repairs. Tag the unit for service at the end of the shift; do not carry amber warnings across multiple days.

Electric counterbalance and reach trucks replace the fuel gauge with a Battery Discharge Indicator (BDI). The BDI reads from 100% (full) down to a cut-off threshold - typically 20% on lead-acid batteries and 10-15% on lithium-ion packs. Below that threshold, most controllers enter a lift-interrupt mode: travel still works, but lifting is disabled to prevent deep-discharge damage to the cells. Operators sometimes mistake this lift-interrupt state for a hydraulic fault - the tell is that the BDI is in the red and the truck still drives normally.

Opportunity charging (plugging in during breaks) is fine for lithium-ion packs but should be avoided with traditional lead-acid batteries, which prefer a full charge-discharge cycle. Check your fleet's battery spec before setting charging habits. For other equipment guidance, the Toyota forklift warning lights article covers the instrument cluster on Toyota IC and electric models in detail.

These lights are not faults - they confirm that a system is active or that a scheduled interval has arrived. Treating a service-interval light as optional is the most common reason fleet maintenance falls behind.

The hour meter is the forklift equivalent of an odometer. Service intervals on most IC forklifts fall at 250 hours (oil and filter change), 500 hours (hydraulic filter, transmission fluid check), and 1,000 hours (full drivetrain service). Electric forklifts use different intervals centered on brush inspection and hydraulic fluid. A wrench or spanner symbol with a clock icon means that interval has been reached. Log it, tag it for the next scheduled PM, and reset the counter after the service is complete.

Operators working with other heavy compact equipment will find similar patterns in the Case skid steer warning lights guide.

Diesel forklifts operating outdoors or in facilities with DPF (Diesel Particulate Filter) emission requirements carry their own set of indicators. The most important is the High Exhaust System Temperature (HEST) light - a yellow or orange flame symbol - which warns that the DPF is in an active regeneration cycle. During regeneration, exhaust temperatures at the tailpipe can reach 600-700 C. Never park a regenerating forklift near combustible materials or inside a trailer. The Caterpillar warning lights article goes deeper on DPF regen behavior on Tier 4 diesel equipment.

LPG forklifts carry a low fuel indicator rather than water-in-fuel sensors. The amber fuel light on a propane truck typically triggers with about 10-15% tank capacity remaining - roughly 15-20 minutes of operation depending on load cycles. Cylinder swaps take about 3 minutes; build that into shift handover rather than running to empty.

Modern forklifts fitted with load management systems carry overload and mast-limit indicators that protect both the operator and the racking system. An overload warning - typically a red light with a weight or scale symbol - means the load on the forks exceeds the rated capacity at the current mast tilt and height combination. The rated capacity on the data plate is for forks level at ground height; capacity drops significantly as the mast tilts back and the load rises. Always check the capacity chart on the data plate for the actual height and load-center you are working at.

A mast height limit or lift-limit indicator signals that the forks have reached the programmed maximum height. Some warehouse systems tie this to racking height to prevent ceiling or sprinkler damage. The indicator is green when within limits and changes to amber or red as the limit approaches.
