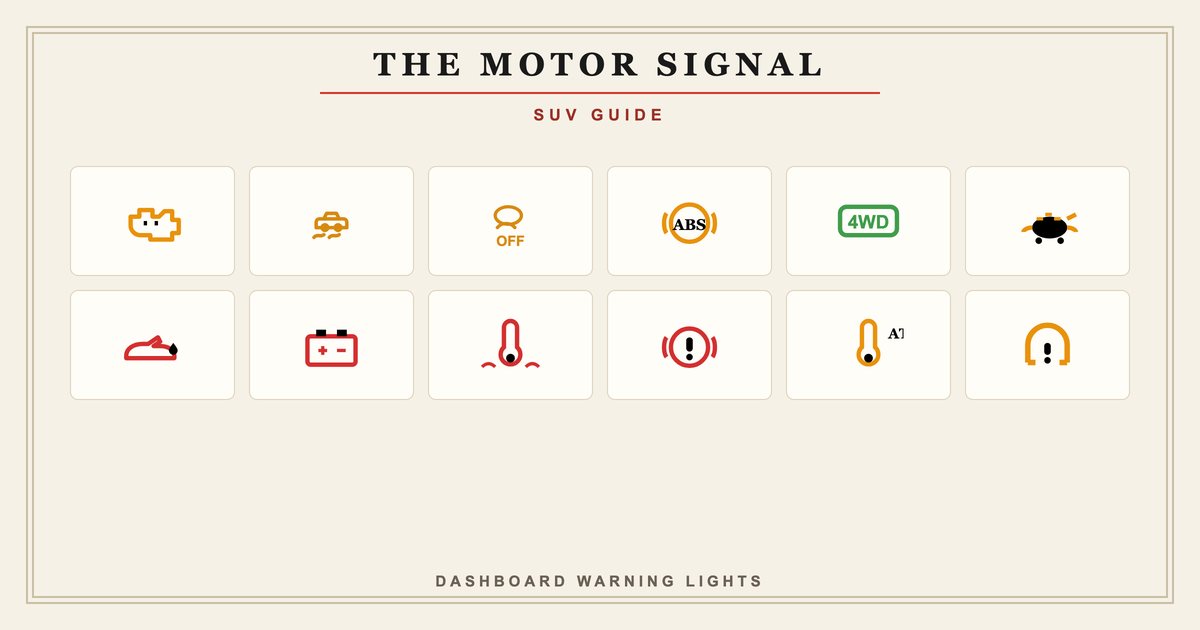

Chevy Trailblazer Dashboard Warning Light Symbols
The full rundown of every warning light on the GMT360 Trailblazer dash and what each one actually demands from you.
Red warning lights - stop or act immediately
Red lights on the Trailblazer cluster indicate conditions that require you to act before continuing. Not all of them mean pull over this instant, but none of them can be ignored safely for long.
Low Engine Oil Pressure
Oil pressure has dropped below the safe minimum. This is a critical mechanical alert - continued driving will cause engine damage. Pull over safely and shut off the engine immediately. Check the oil level on the dipstick. If the oil is full and the light stays on at idle, the oil pump or pickup screen may be at fault. Do not restart without investigation.
Battery / Charging System
The alternator is not charging the battery or the charging voltage is outside the normal range. The vehicle is running on battery reserve. Drive directly to a shop. Check the serpentine belt for damage first - a snapped belt stops the alternator immediately. The Trailblazer alternator and battery both fail without much warning on high-mileage trucks.
Brake System
Brake fluid level is low, the parking brake is applied, or there is a hydraulic fault in the brake circuit. Check that the parking brake is fully released. Pop the hood and check the brake fluid reservoir. Low fluid often means worn pads (the reservoir drops as calipers extend) or a leak. A red brake lamp with no low-fluid condition warrants immediate professional inspection.
Engine Coolant Temperature (High)
The 4.2L inline-six and 5.3L V8 in the Trailblazer can overheat from a failing thermostat, low coolant level, or a stuck fan clutch. Pull over and let the engine cool before adding coolant. Fan clutch failure is a known issue on the 4.2L I6 - the clutch seizes or fails to engage, causing overheating at low speeds. Do not remove the radiator cap until fully cool.
Amber warning lights - service needed soon
These are the lights Trailblazer owners see most. Several of them appear together as a cluster when a single component fails, so the count on the dash overstates the number of actual problems. Read them systematically.
Check Engine (MIL)
The ECM has logged a fault code. Solid means a stored code; flashing means an active engine misfire. Read the code with an OBDII scanner. Common Trailblazer codes: P0446 (EVAP vent solenoid), P0014 and P0010 (cam timing on the 4.2L Vortec), P0300 range misfires, and P0118 (coolant temp sensor). A flashing lamp means reduce power and get to a shop the same day.
StabiliTrak / Traction Control Active
Flashing means the system is actively reducing wheelspin or correcting a skid - this is normal in low-traction conditions. Solid means the system has detected a fault and deactivated. Flashing during acceleration on snow or gravel: lift off the throttle slightly. Solid with no rough driving: scan for codes. A rear wheel speed sensor (C0035 or C0040) is the single most common cause on Trailblazers - the hub-mounted sensors corrode in northern climates.
Traction Control Off
Traction control has been manually disabled or has deactivated due to a fault. The vehicle will allow wheel spin under acceleration. If you pressed the button intentionally (for example, rocking out of snow), press again to re-enable. If this light came on by itself alongside StabiliTrak, treat it as one system fault and scan for wheel speed sensor codes.
ABS Fault
The anti-lock brake system has detected a fault and is disabled. Standard brake function remains intact. The Trailblazer's ABS and StabiliTrak share wheel speed sensor data. A single bad rear sensor commonly triggers both lights at once. Scan for C-codes (chassis codes) before replacing parts. Wheel speed sensors on the GMT360 are mounted in the hub and are a frequent DIY repair.
Service 4WD
The 4WD control system has logged a fault. The transfer case control module (TCCM) cannot complete the requested transfer case shift or has lost communication with the encoder motor. This is one of the most common amber lights on 2002-2006 Trailblazers. Common causes: a corroded TCCM encoder motor connector (under the hood, passenger side of the transfer case), a failed encoder motor itself, or a bad TCCM. Inspect the connector and clean the pins before condemning the motor. 4WD may still function in some modes despite the light.
Reduced Engine Power
The electronic throttle control (ETC) system has detected a fault and put the engine into limp mode. Throttle response is severely restricted. This is a known problem on the 5.3L V8 Trailblazer, though the 4.2L sees it too. Common causes: a dirty or failing throttle body, a faulty throttle position sensor (TPS), or a wiring issue in the ETC system. Scan for P0120-P0123 (TPS) or P1516 (throttle actuator). Clean the throttle body first - it is a free fix that resolves the issue in many cases.
Low Tire Pressure (TPMS)
One or more tires have dropped below the recommended pressure. TPMS was optional on early Trailblazers and standard on later models. Check all four tires with a gauge. Recommended pressure is 35 psi front and rear on most Trailblazer trims, but check the door placard for your exact spec. A persistent TPMS light after inflating can indicate a failed sensor - a known issue on trucks that have spent winters in salt-belt states.
Low Fuel
Approximately 2 to 3 gallons remain in the 22-gallon tank, depending on trim level. Fill up at the next opportunity. The Trailblazer fuel gauge is known to stick or read inaccurately at low levels on some 2002-2004 models due to a fuel level sensor issue. If you have a history of erratic fuel readings, do not rely on the gauge alone.
Transmission Temperature High
The 4L60-E or 4L65-E automatic transmission fluid has exceeded safe operating temperature. Pull over and let the transmission cool with the engine idling. Avoid towing at high speeds with a Trailblazer that has no transmission cooler upgrade. Check the fluid level and condition when cool - dark brown or burnt-smelling fluid means the transmission needs service regardless of this light.
The three-lights-at-once problem on Trailblazers
The Trailblazer's most confusing characteristic is how three amber warning lights - ABS, StabiliTrak, and Traction Control Off - illuminate simultaneously. New owners assume they have three separate failures. They usually have one.
The GMT360 platform uses wheel speed sensor data from each corner to run both the ABS and the StabiliTrak system. When one rear speed sensor fails or loses its signal (usually from corrosion of the sensor body or connector in rust-belt climates), the ABS module immediately disables both ABS and StabiliTrak because it cannot trust the wheel speed data. Traction control goes with it because it shares the same sensor network.
Scan for chassis codes in the C0035 to C0050 range. The code will point to the specific corner. Rear speed sensors on the Trailblazer are part of the hub assembly on some years and can be replaced separately on others - check your specific build before ordering parts. The repair is a common DIY job with basic hand tools.
The same cascade can happen from a failing ABS control module, but sensor failure is roughly ten times more common. Start there. For a broader look at how GM handled this issue across the lineup, the GMC dashboard warning lights guide covers the Envoy twin, which uses identical underpinnings and sees the same faults.
4WD system lights and what they actually mean
The Trailblazer's AutoTrac 4WD system is electrically controlled, and its faults are among the most-discussed on owner forums. The Service 4WD lamp covers a range of conditions rather than a single fault.
The most overlooked fix is the encoder motor connector. This 8-pin connector sits on the passenger side of the transfer case, exposed to road splash and engine heat. The pins corrode, causing intermittent or complete loss of communication between the TCCM and the encoder motor. Cleaning the connector with electrical contact cleaner and applying dielectric grease resolves the Service 4WD light in a significant portion of cases - often without replacing any parts.
If cleaning the connector does not fix it, the next step is reading the TCCM trouble codes with a full-system scanner (not a basic OBDII reader - many generic readers cannot communicate with the TCCM). Codes C0327, C0374, or U1016 point to specific transfer case and communication faults. The encoder motor itself (approximately $80 to $150) is the most common mechanical failure once electrical issues are ruled out.
For comparison on how other trucks handle the same systems, the multiple warning lights guide for Subaru covers a similar simultaneous-lights scenario that confuses owners on an entirely different all-wheel drive platform.
Reduced Power mode - causes and reset
Reduced Power mode on the Trailblazer is triggered by the Electronic Throttle Control system when it detects a discrepancy between the throttle position sensors (there are two on the throttle body) or between the throttle body and the accelerator pedal sensor. The engine enters limp mode, limiting throttle to roughly 20 to 30 percent.
Before spending money, try these steps in order. First, turn the ignition off, wait 30 seconds, and restart - the fault sometimes clears on its own if caused by a momentary signal glitch. Second, inspect the throttle body. Carbon buildup on the throttle plate causes the TPS to read inconsistently. Cleaning the throttle body with throttle body cleaner and a soft rag often restores normal operation immediately. Third, scan for codes. P1516 and P2135 are the most common Trailblazer ETC codes. P2135 specifically points to the two throttle position sensors disagreeing, which can mean a dirty throttle body or a genuinely failed TPS.
The steering wheel exclamation light guide covers another common EPS fault that sometimes accompanies throttle control issues on GM trucks - relevant if you are seeing the power steering warning alongside Reduced Power.
Your questions answered
Why do my ABS, StabiliTrak, and Traction Control lights all come on at the same time on my Trailblazer?
This is the most common warning light scenario on GMT360-platform trucks. A single failed wheel speed sensor cuts the data feed that both ABS and StabiliTrak depend on, so both systems shut down simultaneously and the Traction Control Off lamp follows. Scan for C-chassis codes - C0035, C0040, C0045, or C0050 - to find which corner the problem is on. Replace that sensor (or the hub assembly if the sensor is not sold separately), clear the codes, and all three lamps should go out.
What does Service 4WD mean on a Chevy Trailblazer and is it safe to drive?
Service 4WD means the transfer case control module has detected a fault in the 4WD system. You can usually drive in 2-wheel-drive mode without risk to the engine or transmission, but 4WD engagement may be unavailable or unreliable until the fault is fixed. Start by inspecting and cleaning the encoder motor connector on the transfer case - it is the single most common root cause and costs nothing to fix. If that does not clear the light, have the TCCM scanned for specific fault codes before buying parts.
How do I reset the Reduced Power light on a Trailblazer?
Turn the ignition off for at least 30 seconds and restart. If the light clears, the fault was momentary. If it returns, clean the throttle body before anything else - carbon buildup on the throttle plate is the most common cause and the fix takes about 20 minutes and $10 in cleaner. If cleaning does not help, scan for codes. A P2135 code means the two throttle position sensors are disagreeing and the throttle body may need replacement. Clearing the code without fixing the underlying issue just brings it back at the next startup.
Is it safe to drive a Trailblazer with the Check Engine light on?
A solid Check Engine light means there is a stored fault code but no immediate emergency - you can drive to a shop within a reasonable timeframe. A flashing Check Engine light means an active misfire is occurring right now, which can damage the catalytic converter within minutes of continued driving under load. Reduce speed, avoid hard acceleration, and get to a shop or auto parts store (most will scan codes for free) the same day. Never ignore a flashing Check Engine lamp.
Why does my Trailblazer Reduced Power light come on when it is hot outside?
Heat accelerates carbon buildup on the throttle plate and can cause the throttle body's position sensors to read erratically when the metal expands. It can also stress wiring connectors that are borderline. If Reduced Power mode appears consistently in hot weather, clean the throttle body thoroughly. If the problem persists, inspect the wiring harness connections to the throttle body and accelerator pedal sensor for corrosion or damaged insulation.
