Honda Pilot Dashboard Warning Lights and Symbols
Honda's three-row SUV shares its cluster language with the CR-V but adds all-wheel-drive symbols. Here is each light and how worried to be.
AWD and driver aids
The Pilot adds all-wheel-drive and, on older models, VTM-4 symbols. A quick flash as the system engages is normal; a steady light means the AWD system has flagged a fault worth scanning.
Honda Sensing covers the camera-and-radar aids, which go amber when blocked.

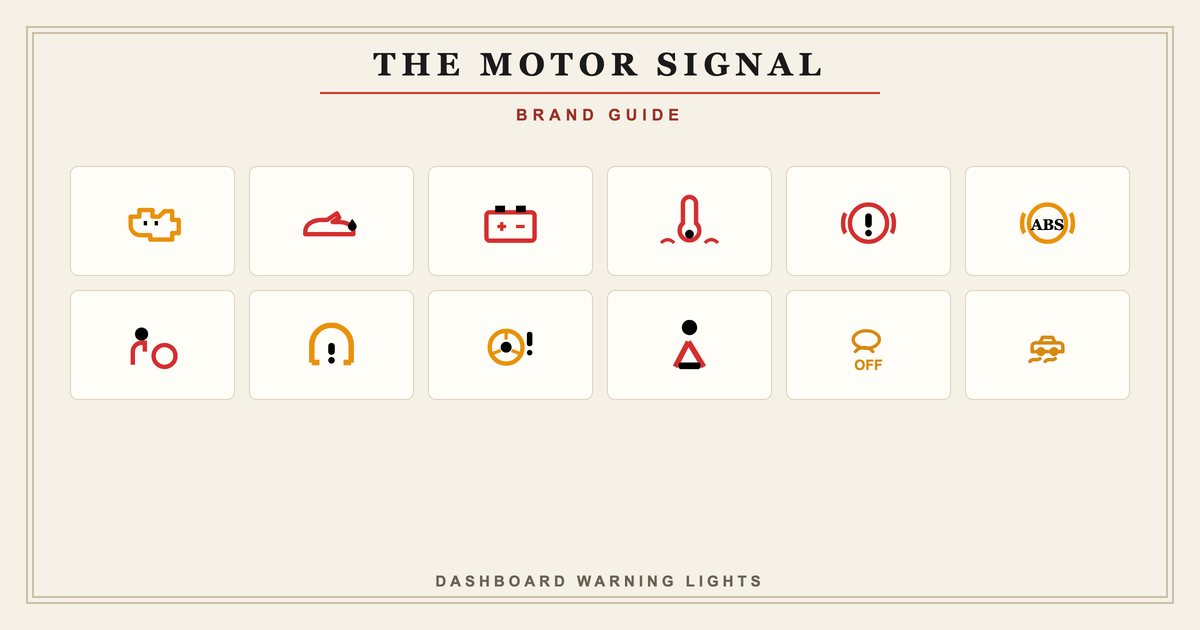

Honda Pilot dashboard warning lights and meanings
The table below runs through the warning lights you are most likely to see on the Honda Pilot, what each one means, and the sensible first move.
Check Engine Light
The powertrain computer has flagged a problem it wants looked at, often emissions related. Have the codes read with an OBD2 scanner. Steady is drive-with-care; flashing means stop and get it checked.
Oil Pressure Warning
Oil pressure has dropped too low to protect the engine, either low oil level or a pump/sensor issue. Treat it as urgent: stop, check oil, and get it looked at before driving further.
Battery / Charging Warning
The car is running on battery reserve because the alternator is not charging properly. Reduce electrical use and head to a shop; you may have limited driving time before it dies.
Coolant Temperature Warning
The engine is overheating, often from low coolant, a stuck thermostat or a failing fan. Stop safely, switch off and let it cool. Never open the cap while hot, and check coolant once cooled.
Brake System Warning
A brake fault is present, low brake fluid, worn pads, or the parking brake left on. Treat any red brake warning as serious. Verify fluid and get it inspected without delay.
ABS Warning Light
ABS has switched itself off, so wheels can lock under hard braking. You can drive, but book a scan; without ABS the car can skid under panic braking.
Airbag (SRS) Warning
An airbag circuit fault means the airbags might not fire when needed. Get the SRS scanned; a faulty system may not protect occupants in a collision.
Tire Pressure (TPMS) Warning
One or more tires is significantly under-inflated, or a TPMS sensor has failed. Set the pressures correctly and inspect for a slow leak or nail.
Power Steering Warning
An electric or hydraulic steering-assist fault has been detected. Have the steering system diagnosed; expect heavier steering until fixed.
Seat Belt Reminder
The car wants a fastened seat belt before it stops chiming. Buckle up. If it stays lit with belts on, a buckle switch or seat sensor may be faulty.
Traction Control Off
Traction or stability control has been switched off or disabled by a fault. Toggle it back on; a stuck light needs a diagnostic check.
Stability Control (ESC) Warning
The ESC system flashed because it is working, or stayed on due to a fault. If it stays lit, have it scanned; steering-angle or wheel-speed sensors are common causes.
Red Master Warning
A high-priority fault has triggered the red warning. Stop safely and read the message center. Red generally means do not keep driving.
Yellow Master Caution
A yellow caution flags a non-critical fault, check the message for detail. Note the message and have it diagnosed before it becomes a bigger problem.
What comes up most
The check engine, VSA and TPMS lights are the frequent flyers on a Pilot, generally sensor or coil issues that a scan sorts quickly.
An AWD or VTM-4 light that stays on can point to the rear differential or a wheel-speed sensor, so get it read rather than ignoring it.
Your questions answered
What does the VTM-4 or AWD light mean on a Honda Pilot?
It relates to the all-wheel-drive system. A brief flash as the system sends power to the rear wheels is normal. A steady light means the AWD system has logged a fault, which can be a wheel-speed sensor, a rear differential issue, or overheating after heavy low-speed use like towing or deep mud. Let it cool if it appeared under load; if it stays on, have it scanned.
Why is my Honda Pilot VSA light on?
VSA is the stability and traction control. Flashing is normal and means it is actively working. Steady means it is off or faulty, leaving you with less grip help. Check the VSA button first. If it will not re-enable, the cause is usually a wheel-speed or steering-angle sensor, which it shares with the ABS, so a scan will pinpoint it.
Is the Pilot check engine light urgent?
A steady light with the SUV running fine is a scan-it-soon situation, not an emergency. It becomes urgent if it flashes, signalling a misfire that can damage the catalytic converter, or if it comes with power loss or rough running, in which case ease off and get it diagnosed. Common Pilot triggers include ignition coils and evap faults.
