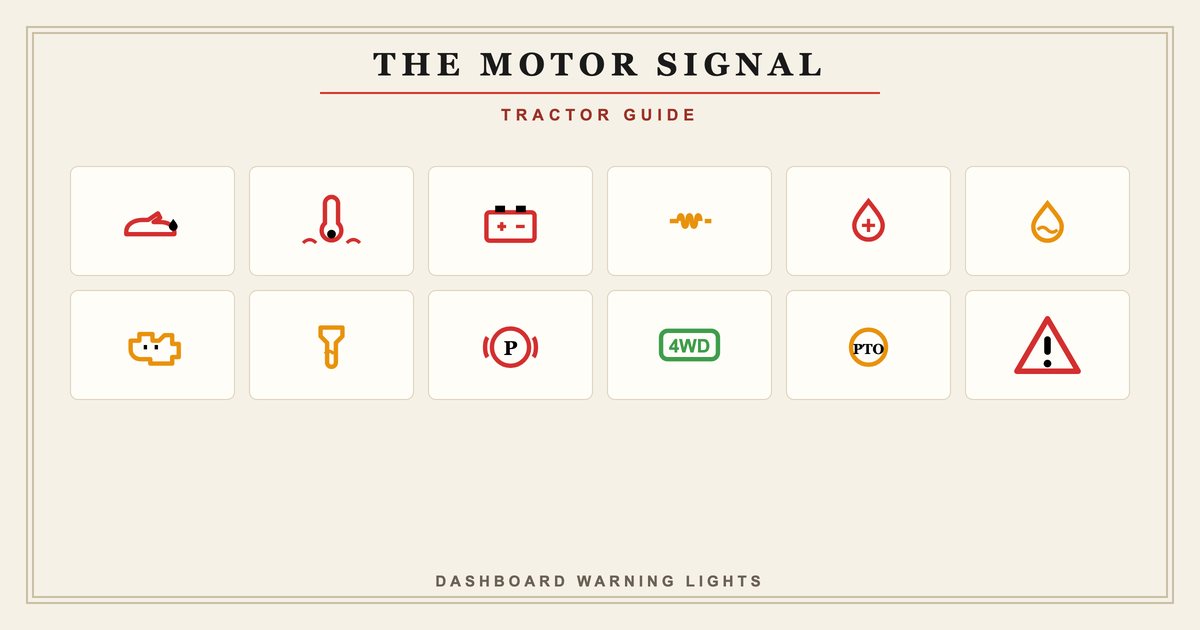

Kioti Tractor Error Codes and Dashboard Warning Lights Explained

Kioti uses a combination of simple 'F' codes visible on the tachometer or hour-meter display and longer DTC strings on models fitted with a full digital instrument cluster. The codes below are the most frequently reported across Kioti owner forums and dealer service records for the DK, CK, CS, and NX series.

F01 (DTC 805) signals a missing or erratic engine speed sensor signal. The ECU expects a tachometer pulse from the crankshaft or camshaft sensor and is not receiving one. On Kioti DK and CK models, this can prevent the engine from starting or cause the tachometer needle to read zero while running. Check the wiring harness to the sensor for chafe or corrosion before condemning the sensor itself. The connector is typically located at the rear of the engine block near the flywheel housing.

F09 / DTC 2F09 / DTC 94 F09 is the most common code Kioti owners encounter. It relates to the water-in-fuel sensor in the pre-filter bowl or a fault in the fuel system circuit. The first action is always to drain the water separator bowl using the petcock at the base - water in the bowl triggers the sensor even if there is no injector or pump fault. After draining, clear the code by cycling the ignition, and recheck. If F09 returns immediately without actual water present, the sensor or its wiring circuit has failed.

F05 / DTC 4F05 points to a hydraulic or transmission system fault. On CK series models this commonly accompanies sluggish loader response or jerky HST transmission behaviour. Check the hydraulic fluid level first - low fluid triggers this code before any mechanical damage occurs. Replace the hydraulic filter if it is at or past its service interval, as a restricted filter causes the same fault code.

F26 / DTC 1669 F26 is specific to Kioti DK series tractors and flags a crank position sensor fault. Symptoms include hard starting, stalling under load, or the engine cutting out unexpectedly. This code generally requires the crank sensor to be replaced and the code cleared with a Kioti service tool.

DTC 3F05 covers a transmission or hydraulic solenoid fault on models with a power shuttle or shuttle shift transmission. The solenoid wiring and connector should be checked for moisture ingress before replacing the solenoid itself. For a closer look at how hydraulic warning systems work on comparable compact equipment, the Kubota dashboard lights guide covers similar fault-detection logic on their M and L series tractors.

These indicators require an immediate safe shutdown. Running through red lights on a Kioti tractor risks terminal engine or transmission damage within minutes.

The engine oil pressure light (red oil can symbol) is the most critical indicator on the cluster. If it lights up with the engine running above idle, oil pressure has dropped below the minimum threshold. Lower the implement to the ground, shut the engine off immediately, and check the oil level with the dipstick. Do not restart until you have identified why pressure dropped - a sudden drop usually means an oil leak, a blocked pickup screen, or a failed pressure relief valve.

The coolant temperature red light means the engine has exceeded its safe temperature ceiling. On Kioti tractors working in summer conditions, this often results from debris packed into the radiator fins. Idle the engine for 60 seconds to allow coolant to circulate, shut down, and inspect the radiator core. Clean it with compressed air directed from inside out. Check the coolant level in the overflow reservoir as well.

The parking brake indicator glows red when the parking brake is engaged. On Kioti models this doubles as a safety interlock - some functions are disabled while the brake is on. Verify it is fully released before operating the loader or PTO.

Amber lights on Kioti tractors warn of conditions that are developing but have not yet caused damage. They allow you to finish a short, low-intensity task but should not be ignored past the end of the working day.

The water in fuel indicator is the amber counterpart to the F09 fault code. It illuminates when the float in the pre-filter bowl detects accumulated water. Drain the bowl immediately - water that reaches the injection pump causes irreversible damage to the high-pressure fuel system on common-rail Kioti models. The drain petcock is on the underside of the primary filter assembly.

The glow plug / preheat light is amber during cold starts. Turn the key to ON and wait for this light to go out before cranking. In temperatures below 5 C (41 F), Kioti recommends waiting the full preheat cycle. Forcing the starter before preheat completes stresses the starter motor and results in hard starting.

The check engine (MIL) amber light signals an engine management fault has been stored in the ECM. The engine will continue running but may have reduced performance or increased emissions. The fault code can be read with a Kioti service tool or a compatible OBD2 scanner if the tractor is fitted with a standard diagnostic port. On models with an F-code display, the relevant F code will appear alongside this lamp. The Mahindra tractor warning lights guide covers similar engine management indicators on their mStar and max series, which share comparable tier 4 emission architectures.

The battery / charging light means the alternator is not maintaining charge. Kioti tractors are particularly vulnerable to corroded battery terminals given their agricultural use environment - clean terminals are the first check. If terminals are clean, the alternator belt tension and the alternator itself should be inspected.

The fuel filter light (where fitted) signals that the high-pressure fuel filter is restricted. Replace the filter promptly - running with a blocked filter starves the injection pump and causes over-pressure damage on common-rail systems. The filter is typically located on the right side of the engine compartment, adjacent to the fuel injection pump.

The hydraulic oil temperature indicator illuminates when the hydraulic fluid is too hot. On Kioti loaders working in continuous high-cycle conditions (repetitive bucket fills), the hydraulic system can overheat in summer conditions. Increasing engine RPM to maximum helps the hydraulic oil cooler work harder. If the light persists, inspect the cooler for packed debris. For a deeper look at how hydraulic warning systems behave on similar-spec compact tractors, the Kioti CK3510 dashboard guide covers the specific instrument layout on that model.

Green indicators on Kioti tractors confirm that a function is active. They are not fault warnings.

The 4WD indicator confirms four-wheel drive is engaged. On Kioti tractors with manual front axle engagement, this light confirms the front axle is locked in. On models with automatic 4WD (A4WD), the light flashes briefly when the front axle engages during wheel slip, which is normal behaviour.

The PTO indicator confirms the power take-off shaft is engaged and spinning. Always verify this light is out before getting off the tractor, connecting or disconnecting implements, or reversing close to people. PTO engagement on Kioti models requires the operator to be in the seat - the seat switch cuts PTO if the operator leaves the seat with it engaged.

The diff lock indicator confirms the rear differential lock is engaged. Kioti recommends disengaging the diff lock before turning - turning with the lock engaged in soft ground puts severe stress on the rear axle shafts. This applies particularly to models with a mechanical foot-pedal diff lock.

The transmission temperature light appears on HST (hydrostatic transmission) Kioti models. The HST fluid is shared with the hydraulic circuit on some Kioti platforms, so an overheating HST may also trigger the hydraulic oil temperature indicator at the same time. Prolonged trailer towing on grades is the most common cause on CK HST models. For a broad comparison of how tractor dashboard symbols differ between manufacturers, the Kioti tractor warning lights overview consolidates the key differences between Kioti series.

Kioti tractors with a digital multi-function display can store multiple active and historical fault codes. When more than one code is active, they cycle through on the display in sequence. Record all codes before clearing them - a stored code that does not reappear after clearing is a one-time event; a code that immediately returns after clearing indicates an active fault still present in the circuit.

To clear stored codes on most Kioti models, cycle the ignition key off, wait 30 seconds, and restart. On models with a full digital display, the fault history can be accessed via the diagnostics menu (hold the mode or SET button for five seconds from the main display). On DK and NX series models, a Kioti dealer scan tool or a compatible third-party agricultural diagnostic interface is needed to clear codes that do not self-clear after the fault is corrected.

The F09 code is unusual in that it will return immediately if water is still present in the separator bowl, even if the ignition has been cycled. Drain the bowl, cycle the key, and wait - if F09 clears and stays clear, the repair is complete. If it returns within a minute, the sensor itself has failed or its wiring has a short to ground. On older CS series Kioti models, the water separator float can stick in the 'water present' position even after draining - a light tap on the bowl housing frees the float. For a model-specific breakdown of the CK3510 instrument cluster, the Kioti CK3510 dashboard article covers that model in detail.
