Reading Your New Holland Instrument Cluster: Every Warning Symbol Explained
New Holland clusters split into three severity tiers - here is what each color and symbol is telling you before it becomes a costly repair.

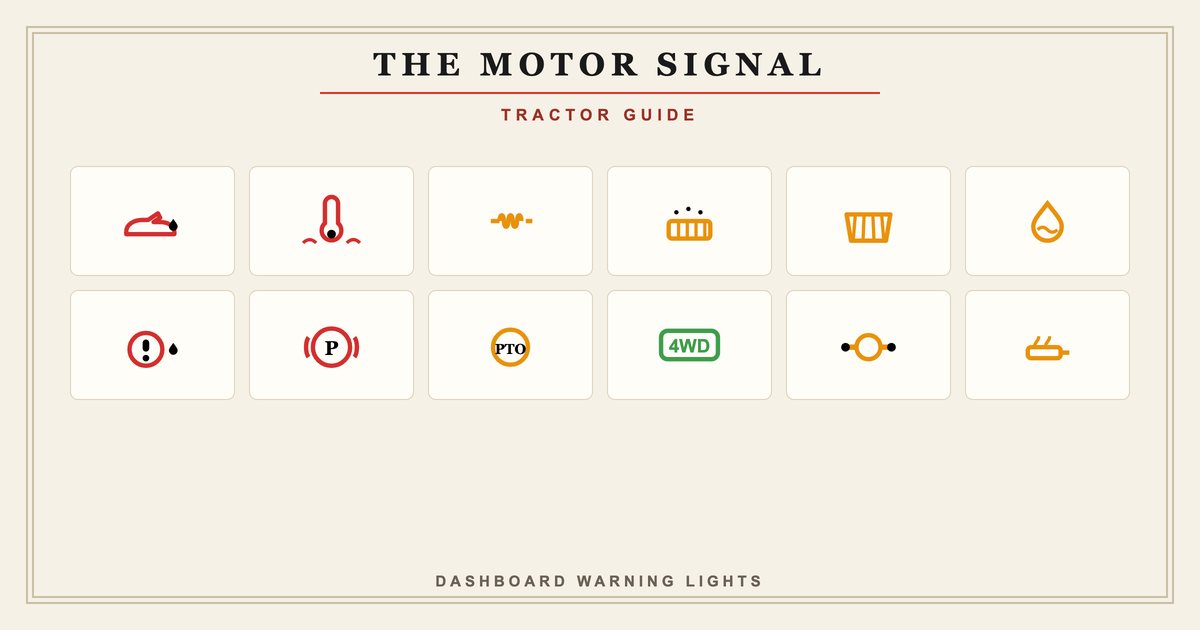

New Holland Dashboard Symbols: Full Cluster Reference
New Holland groups its indicators by urgency. Red symbols share a 'STOP' lamp that illuminates together with the individual fault light - if you see the master red stop indicator flash on, cut power as soon as it is safe. Amber symbols share a caution lamp but allow you to complete the immediate task. Green and blue indicators are status lights, not faults.
Work through the list below from top to bottom during a pre-start walkaround: any red or amber that shows at key-on and does not extinguish within five seconds after the engine fires needs attention before you head to the field.
Engine Oil Pressure
Engine oil pressure has dropped below the safe operating threshold. Oil may be critically low, the pump failing, or a seal leaking internally. Stop the engine immediately. Check oil level on the dipstick before restarting. If level is correct, do not restart - call your dealer.
Engine Coolant Temperature
Coolant temperature has exceeded the safe limit. Common causes are low coolant level, a blocked radiator, or a failed thermostat. Pull to a safe stop, shut down, and let the engine cool for at least 20 minutes before checking the coolant level. Never open a hot radiator cap.
Battery / Alternator Charge
The alternator is not charging the battery. The tractor will continue running on battery reserve, but electrical systems will fail progressively. Check the alternator belt for slippage or breakage. If the belt is intact, have the alternator tested before the next day's work.
Hydraulic Oil Temperature
Hydraulic oil has overheated, typically from sustained heavy three-point lift cycles or working implements at full pressure in hot weather. Lower implements to the ground, reduce hydraulic demand, and idle the engine to let the oil cool. Check the hydraulic oil level and radiator fins for blockage.
Transmission Oil Temperature
Transmission oil temperature is critically high. Sustained heavy draft loads or low oil level are the usual causes. Stop work immediately. Allow the transmission to cool with the engine idling. Check the transmission oil level and inspect the cooler for debris.
Master Stop Warning
A critical system fault has been detected. The dot-matrix display will show which system triggered the stop condition. Read the text on the dot-matrix display, shut down safely, and do not restart until the root cause is identified and corrected.
Glow Plug Preheat
Diesel glow plugs are heating the combustion chambers. This is normal pre-start behaviour in cold conditions - the light goes out when the engine is ready to crank. Wait for the light to extinguish before turning the key to start. Cranking too early in cold weather causes hard starts and premature wear.
Air Filter Restriction
The engine air filter is loaded with dust or debris and airflow is restricted. Power loss and black exhaust smoke often accompany this warning. Clean or replace the air filter element at the end of the day. In dusty conditions, check the pre-cleaner bowl first.
Water in Fuel / Fuel-Water Separator
Water contamination has been detected in the fuel system, most often in the primary fuel-water separator bowl. Drain the water separator bowl before operating further. Recurring water in fuel suggests condensation buildup in the tank - fill the tank fully at day's end to reduce air space.
Fuel Filter Restriction
The fuel filter is partially blocked, reducing flow to the injection pump. Cold temperatures can cause diesel wax to block filters faster. Replace the fuel filter element. In winter, switch to an appropriate low-temperature diesel blend to prevent recurrence.
DPF / Diesel Particulate Filter
The diesel particulate filter has accumulated soot and needs a regeneration cycle to burn it off. Steady light means passive regen is occurring; flashing means active regen is required. If steady, continue work at normal load and speed. If flashing, reduce load and follow the operator manual procedure to trigger an active regeneration. Do not ignore a flashing DPF light.
Parking Brake Engaged
The parking brake is applied. On most T-series models this light also flashes if an electronic fault is detected in the park brake circuit. A steady light is normal when the brake is set. A flashing light with the brake released indicates a circuit fault - have it diagnosed before field use.
PTO Engaged
The power take-off shaft is active and turning. This is a status indicator, not a fault. Normal when running PTO-powered implements. Always disengage the PTO before dismounting, servicing implements, or approaching the rear of the tractor.
4WD / Four-Wheel Drive Active
Four-wheel drive is engaged. Confirms drive torque is being sent to the front axle. Normal for field and soft-ground work. Disengage on firm road surfaces to reduce tyre wear and prevent axle wind-up on hard turns.
Differential Lock Engaged
The rear differential is locked, coupling both rear wheels to rotate at the same speed. Useful for traction in soft or muddy conditions. Normal when engaged. Remember to disengage before turning - operating the diff lock through a tight turn can put excessive stress on the axle shafts.
High Exhaust Temperature (HEST)
Exhaust gas temperature is elevated during an active DPF regeneration cycle. This is an advisory light, not a fault, but signals a fire risk near combustible material. Move the tractor away from dry grass, crop residue, or any combustible surface until the regeneration cycle completes and the light goes out.
Hydraulic Oil Level Low
Hydraulic oil reservoir level has dropped below the minimum mark. Low oil causes sluggish implement response and can damage the pump. Top up the hydraulic reservoir with the correct grade specified in the operator manual before resuming hydraulic-intensive work.
Your questions answered
Why does the red stop light come on with other warning symbols on a New Holland?
The red master stop lamp is wired to illuminate alongside any critical fault - oil pressure, coolant temperature, transmission temperature, and a handful of other red-tier warnings all trigger it at the same time as their individual symbol. Read the dot-matrix display, which shows the specific fault in text, to identify the cause.
What does a flashing DPF light mean on a New Holland tractor?
A steady DPF light means passive regeneration is already happening during normal operation. A flashing light means the filter is heavily loaded and cannot clear itself passively - you need to park safely away from dry vegetation, reduce load, and follow the active regen procedure in the operator manual. Ignoring a flashing DPF light can cause the filter to block completely, which requires dealer service to clear.
Is it safe to drive a New Holland tractor with an amber warning light on?
Amber lights are caution warnings, not stop commands. You can generally complete the immediate task - finishing a row, moving to a safe stopping point - but plan to address the issue the same day. Common amber warnings like air filter restriction, water in fuel, or fuel filter blockage are straightforward owner-serviceable tasks. Amber hydraulic oil temperature or transmission temperature warnings should be treated more urgently: reduce load and let the system cool before continuing.
What does the glow plug light mean on a New Holland diesel tractor?
The glow plug preheat light shows that the diesel glow plugs are warming the combustion chambers before starting. It is a normal part of cold-start procedure. Wait for the light to extinguish - usually 5 to 15 seconds depending on air temperature - then crank the engine. Starting too early makes cold starts harder and shortens injector life over time.
Why does my New Holland show the parking brake light when the brake is not set?
A parking brake light that illuminates or flashes when the brake pedal is released points to an electronic fault in the park brake circuit rather than a mechanical issue. This can be a faulty position switch, a wiring short, or a solenoid fault on models with electro-hydraulic park brakes. Have the fault code read at your dealer before relying on the park brake in field conditions.
