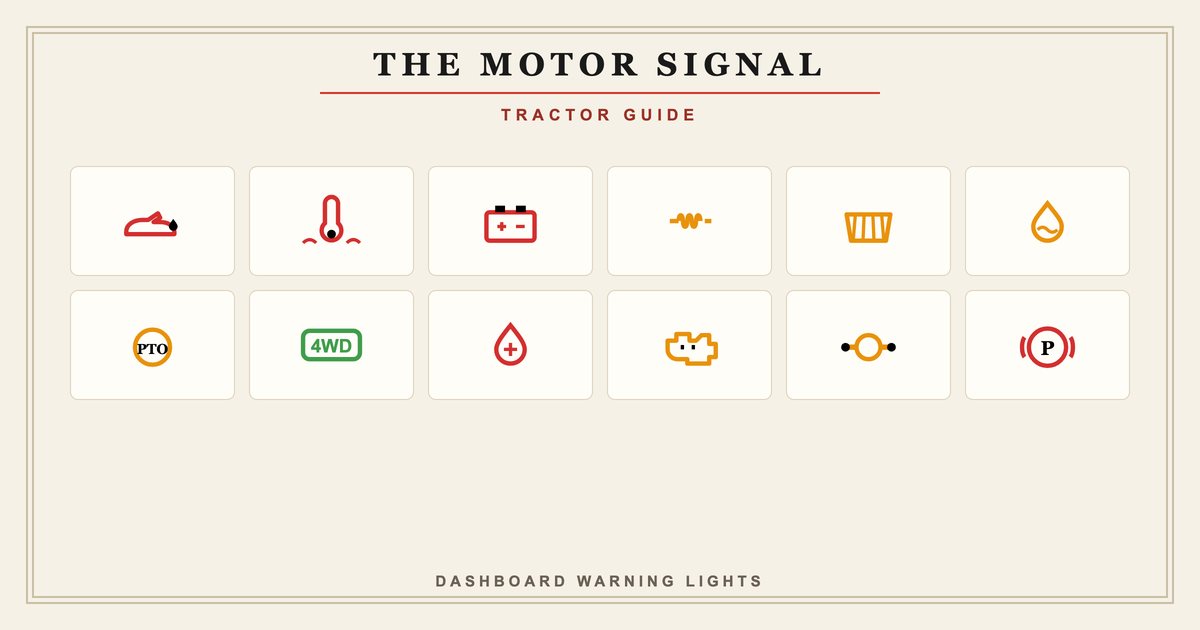

Mahindra Tractor Warning Light Symbols Explained

Red lights on a Mahindra cluster are non-negotiable. The two you must know cold are the engine oil pressure lamp and the coolant temperature lamp. If either comes on while the tractor is under load, park it safely and shut down before checking anything else.

The oil pressure light uses a classic oil-can symbol. If it illuminates at normal operating RPM - not just at the instant of cold cranking - pull over and check the crankcase level before restarting. Running even a few minutes on low pressure can score bearings. The coolant temperature gauge and lamp work together; once the needle climbs into the red arc and the lamp fires, the engine is already borderline. Shut down, let it cool for 15-20 minutes, then check the coolant reservoir and radiator cap seal.

The battery charge lamp (a battery or alternator icon) turns red when the alternator is no longer charging. You will typically have 20-40 minutes of operation on battery reserves before systems fail, so head back to the barn. Do not assume a loose belt is the only culprit - a failed voltage regulator is equally common on higher-hour Mahindra models.

Mahindra's diesel engines use glow plugs to pre-heat the combustion chamber before a cold start. When you turn the key to the 'on' position, the glow plug lamp (a coiled heater symbol) comes on. Wait for it to go out - typically 5 to 15 seconds depending on ambient temperature - before cranking. Attempting to start before the lamp extinguishes leads to hard starting, white smoke, and unnecessary wear on the plugs themselves.

If the glow plug lamp stays on while the engine is running, or flickers on at operating temperature, that is a different matter. On eMax and newer numbered-series tractors it can indicate a failed plug element or a fault in the glow control relay. A single failed plug will still allow the engine to run but will cause rough cold-start behavior until fixed.

Unlike the stop-now red lamps, amber lights on a Mahindra cluster are scheduled-maintenance reminders that allow you to finish the row before dealing with the issue - but not the whole day.

The air filter restriction lamp fires when the air filter is clogged enough to restrict intake. Dirty air means rich combustion, black smoke, and power loss. On most Mahindra models the air filter has a mechanical restriction indicator (a small red button on the filter housing) as well as the dash lamp; check both. If only the dash lamp is on, verify the wiring to the restriction sensor before replacing the filter unnecessarily.

The fuel filter water-in-fuel lamp is triggered by a float sensor at the bottom of the primary fuel filter bowl. Water in diesel causes injector corrosion and rough running. Drain the bowl by opening the petcock at the base of the filter housing until clean diesel flows, then reset. If the lamp returns within a few hours, the fuel supply itself is contaminated and the tank may need to be drained. Mahindra tractors also use a transmission/hydraulic oil temperature lamp on larger models - it fires when the hydraulic circuit runs hot, usually from extended loader work in high ambient temperatures.

If you operate in dusty or wet conditions regularly, see how New Holland's instrument cluster handles similar maintenance intervals for comparison.

Mahindra's mid-frame and larger tractors (4540, 5570, 6000 series and up) include a dedicated hydraulic oil warning lamp that monitors both oil level and temperature separately from the engine oil system. If this lamp fires at normal operating temperature, check the hydraulic reservoir sight glass first - low fluid is far more common than a sensor fault. Low hydraulic fluid causes the three-point hitch to respond sluggishly before any warning light appears, so if your implement lift feels lazy, check the fluid level before the lamp even fires.

The differential lock lamp is a green status indicator on models equipped with a mechanical or electronic diff-lock. It confirms the rear axle is locked - a useful reminder when turning at the headland, since a locked diff on a tight turn loads the driveline hard. Kubota's approach to differential-lock indication is nearly identical and worth knowing if you run both brands in the same fleet.

These green and blue status lamps confirm that a system is active rather than warning of a fault. The PTO engaged lamp is one of the most safety-critical indicators on any tractor. If you dismount or leave the operator station, confirm this lamp is off before approaching any implement. Mahindra's ROPS-equipped models automatically cut PTO power if the operator leaves the seat without engaging the park brake on some configurations - the lamp going out is the confirmation.

The four-wheel-drive indicator (4WD lamp) confirms front axle engagement. Most Mahindra tractors use a manual lever or a console button to engage 4WD; the lamp tells you it has actually engaged rather than just that you moved the lever. On older mechanical systems, the lamp going out unexpectedly can indicate a front axle engagement fork or shift collar fault.

The work lights lamp (if fitted) simply confirms the rear work-light circuit is on. Larger cab models also carry a parking brake indicator that glows red if you attempt to move with the brake applied - on those models it doubles as a reminder on start-up.

Mahindra tractors sold in North America since around 2012 are fitted with Tier 4-compliant engines. These add a check engine / MIL lamp (an engine outline symbol) and, on cab models with diesel particulate filters, a DPF regeneration lamp. The MIL will illuminate for a wide range of faults - from a loose sensor plug to a real emissions fault - and requires a diagnostic scan tool to read the stored fault codes properly. Do not ignore a steady MIL; a lamp that comes on and stays on through a work day will often be accompanied by a fault code that a Mahindra dealer can pull with their scan tool.

The DPF regeneration lamp means the filter is loading with soot and needs a passive or active burn-off. Do not park in dry grass or near flammable material during an active regen - exhaust temperatures spike during the process. If the regen lamp stays on and the tractor goes into reduced-power mode, an active forced regen through the dealer's service tool may be needed. Related reading on similar compact tractor warning systems: Takeuchi compact equipment warning lights follow a comparable DPF logic.
