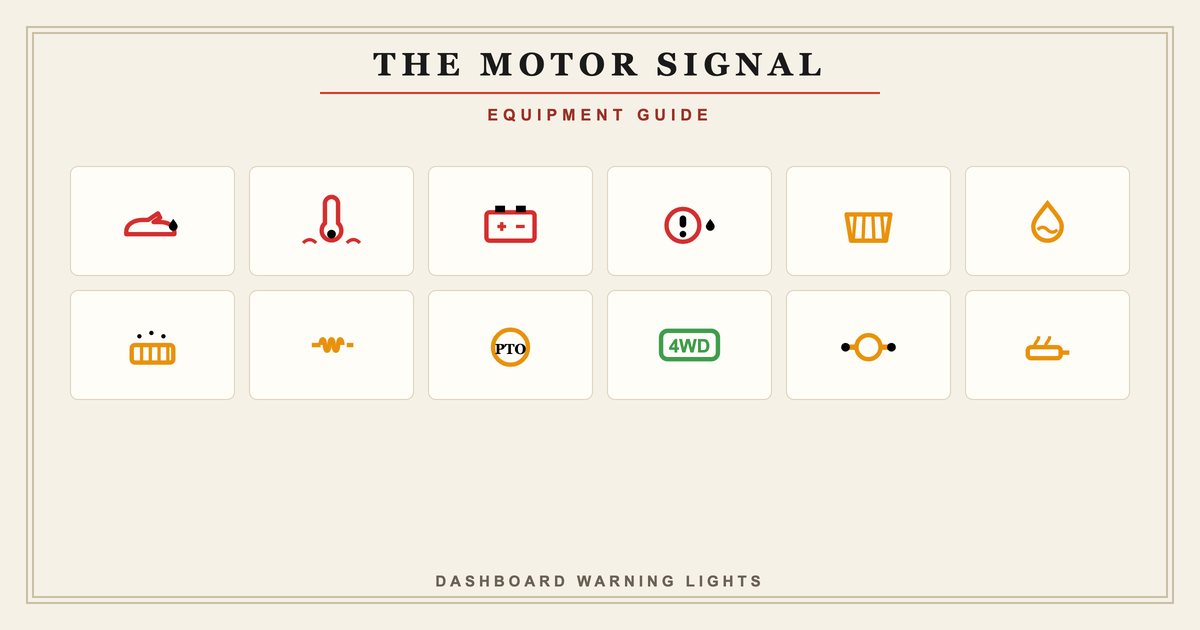

Kubota Dashboard Warning Lights: What Every Symbol Means
Red means stop the engine now - here is what every light on a Kubota instrument cluster is telling you and how to respond.
Red Warning Lights - Stop the Engine
A solid red light on a Kubota is a hard stop. Shut down the engine, move to a safe location, and investigate before restarting. Running through a red alert is the most common cause of expensive engine and hydraulic repairs.
Engine Oil Pressure Warning
Oil pressure has dropped below the safe operating threshold. The engine is not being lubricated adequately. Stop the engine immediately. Check oil level once cool. Do not restart until the cause is found - low oil, failed pump, or blocked pickup screen.
Engine Coolant Temperature
Coolant temperature has exceeded the normal operating range. Continued running risks warped heads or seized pistons. Shut down and allow the engine to cool for at least 30 minutes. Check coolant level, radiator fins for debris, and the thermostat. Never remove the radiator cap while hot.
Battery / Charging System
The alternator is not maintaining charge, or battery voltage has fallen critically low. The machine is running on battery reserve only. Finish the immediate task and shut down. Check the alternator belt, battery terminals, and battery condition. Continued work risks a no-start situation in the field.
Hydraulic System Warning
Hydraulic pressure is below the safe threshold. Caused by low fluid level, a clogged filter, or a failing pump. Stop work immediately. Check hydraulic fluid level and condition. A milky or foamy fluid indicates water contamination. Replace filter and fluid if necessary before returning to service.
Amber Warning Lights - Service Soon
Amber lights on Kubota tractors signal conditions that are not yet critical but will become problems if ignored. You can generally complete the current task, but investigate before the next work session. On DPF-equipped models (L6060, MX5400, M6060, M7060, M5-111), amber regen lights need attention during the same working day.
Air Filter Restriction
The air filter element is loaded with debris and restricting airflow to the engine. The engine will run lean and underpowered. Clean or replace the air filter element. On dusty sites, check daily. Ignoring this accelerates cylinder and piston wear from unfiltered air bypassing the element.
Fuel Filter Warning
The fuel filter is clogged or fuel flow is restricted, usually from contaminated fuel or a filter past its service life. Replace the fuel filter. If the amber light returns quickly after replacement, suspect contaminated fuel in the tank - drain and clean the tank before refilling.
Water in Fuel
The fuel filter/water separator has collected water from condensation or contaminated fuel. Water in a diesel injection system causes corrosion and injector failure. Drain the water separator immediately using the drain cock at the bottom of the bowl. If the light returns within hours, the fuel supply is contaminated - drain the tank.
DPF Regeneration Required
The Diesel Particulate Filter has accumulated enough soot that a regeneration burn-off cycle is needed. Applies to Tier 4 Final models only. For a flashing amber regen light, raise engine RPM to 2000-2200 and continue working - regeneration will run automatically. If the light stays solid, park the machine, set the parking brake, and initiate a stationary regen cycle per the operator manual.
Low Fuel
Fuel level is below the reserve threshold. Refuel promptly. Running a diesel dry introduces air into the fuel system and requires bleeding the lines to restart - a time-consuming field repair.
Pre-Start and Status Indicators
These lights appear during startup or confirm that a system is engaged. They are not fault warnings. The most important pre-start indicator is the glow plug light - skipping the preheat cycle, especially in cold weather, causes hard starts and excess wear on starter motors and batteries. Mahindra tractors use a similar glow plug preheat sequence, so if you have worked with both brands, the process is familiar.
Glow Plug / Preheat Indicator
The glow plugs are heating the precombustion chambers before starting. Turns off when the cylinders are ready to fire. Wait for this light to go out before turning the key to start. In temperatures below 5C (40F), the wait can be 10-20 seconds. Cranking before the light goes out leads to white smoke and rough cold starts.
Service / Hour Meter Alert
A scheduled maintenance interval has been reached, typically engine oil and filter at 200 hours on most Kubota models. Service the machine. After completing maintenance, reset the service reminder per the operator manual - usually a button-hold sequence on the dash panel.
PTO Engaged
The Power Take-Off clutch is active. Implement attached to the rear PTO shaft is spinning. This is a normal status light. Disengage PTO before dismounting or working near the implement. The light goes out when the PTO is switched off.
4WD Engaged
Front-wheel drive has been activated. All four wheels are driven. Normal status indicator. Disengage 4WD on hard surfaces at road speeds to prevent tire scrub and front axle stress. Re-engage when in soft or slippery ground conditions.
High Beam Active
Headlights are set to high beam. Dip to low beam when approaching other operators or road traffic.
Differential Lock
The rear differential lock is engaged, locking both rear wheels to rotate at the same speed for traction in mud or loose soil. Disengage differential lock before making turns or driving on hard surfaces. Turning with the diff lock engaged causes severe tire wear and can damage the axle.
DPF Regeneration - The Light Most Owners Get Wrong
Tier 4 Final Kubota tractors (L6060 and above) carry a Diesel Particulate Filter that traps soot from exhaust gases. As soot builds up, the filter must periodically burn it off at high exhaust temperatures - a process called regeneration.
Kubota uses a three-stage warning sequence. A flashing amber regen light means automatic regeneration has started - raise the throttle and keep working. A solid amber regen light means the automatic cycle could not complete - park the machine, apply the parking brake, and run a stationary regen at high idle. A red or solid high-exhaust-temp warning means stop work and do not park near dry vegetation because exhaust temperatures during regen can exceed 600C. Case skid steers with Tier 4 engines follow an almost identical regen sequence, so operators switching between the brands will recognize the stages.
Ignoring repeated regen requests leads to DPF plugging, loss of power, and an expensive forced regen or DPF replacement at a dealership. Error codes P2002, P242F, and P2463 all trace back to neglected or failed DPF regeneration cycles.
High Exhaust Temperature
Exhaust temperature is elevated, typically because a DPF regeneration cycle is in progress. Keep the machine away from dry grass, hay, or any combustible material. Do not park and walk away during an active regen cycle.
Quick Reference by Series
The exact lights available vary by model line. BX and B sub-compact series run naturally aspirated diesel engines with no DPF, so there are no regen lights. Their dashboards cover oil pressure, coolant temp, battery charge, glow plug, and PTO as standard. L and MX series from around 2014 onward added Tier 4 Final engines with DPF and the associated regen indicators. M-Series utility tractors (M6060, M7060, M5-111) have the most complete instrument cluster, often with a multi-function LCD showing engine hours, coolant temp, DEF/AdBlue level on some models, and a full service reminder system.
Regardless of series, the rule is the same: any red light means stop. If you are unsure about an amber symbol on an older machine without an LCD display, cross-reference with the operator manual for that specific series - Kubota publishes free PDF manuals on its website. New Holland instrument clusters use a similar color-coded severity approach for their tractor ranges, so operators familiar with one brand will adapt quickly to the other.
Your questions answered
What does a red light on a Kubota tractor mean?
A red warning light on any Kubota model means shut down the engine immediately. The most common red lights are engine oil pressure, coolant temperature, and hydraulic system pressure. Continuing to run with a red light active risks permanent engine or hydraulic damage.
Why does my Kubota have a flashing light when I start it?
A brief flash of warning lights at key-on is normal - it is the self-test cycle confirming the bulbs and circuits work. The lights should extinguish within a few seconds of the engine starting. If a light stays on after the engine is running, that is a genuine fault that needs attention.
How do I reset the service light on a Kubota tractor?
Most Kubota models reset the oil change reminder by pressing and holding the hour meter button (or the 'Select' button on LCD models) for 3-5 seconds with the key in the 'ON' position immediately after completing the service. The exact procedure varies by model - check section 6 of your operator manual for the reset steps specific to your series.
My Kubota DPF light keeps coming back - what is wrong?
Recurring DPF regen lights usually mean the tractor is being operated at low load and low RPM for extended periods - idling in a yard, for example. Diesel particulate filters need heat to burn off soot, and light-duty work does not generate enough exhaust temperature. Try running the machine at 2000+ RPM under load for 30-minute blocks. If the light returns immediately after a completed regen, the DPF sensor, regen heater, or the filter itself may need dealer attention.
Can I drive a Kubota tractor to the road with the PTO light on?
You can, but the PTO shaft or implement attached at the rear will still be spinning. Always disengage the PTO before driving on roads or near people. Confirm the green PTO light has gone out before moving to a public road.
