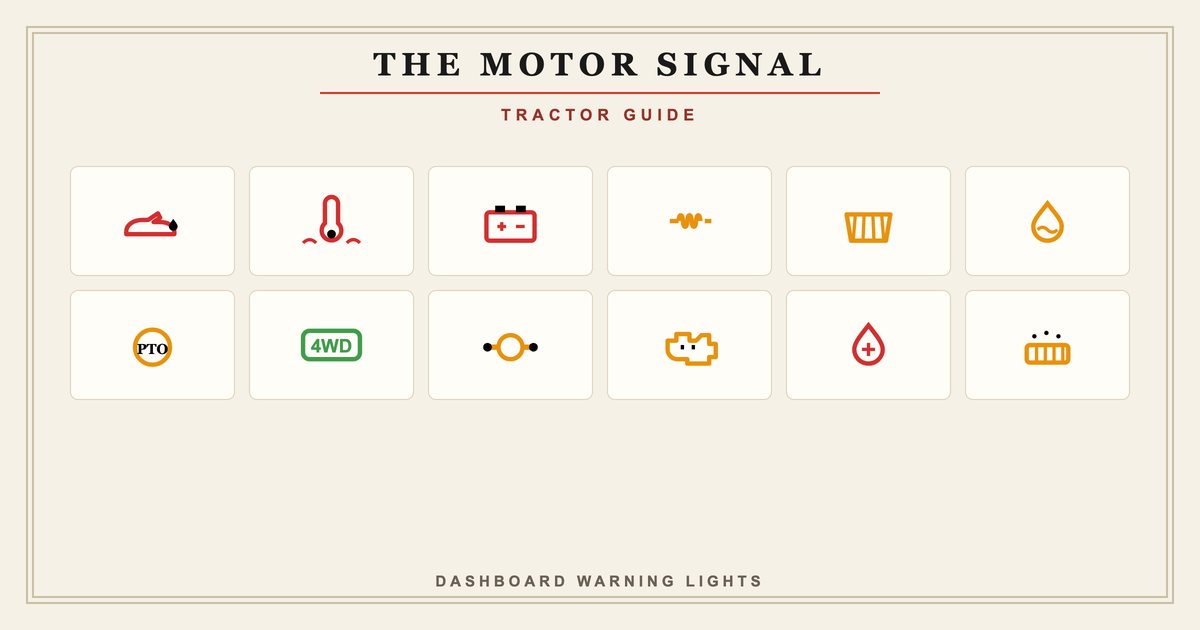

Kioti Tractor Warning Lights: Every Symbol Explained

The two lamps that demand an immediate engine shutdown on any Kioti tractor are the engine oil pressure lamp and the coolant temperature lamp. Both use standard ISO symbols - an oil can outline and a thermometer-in-waves respectively - and both indicate conditions that can destroy an engine within minutes if ignored.

The oil pressure lamp illuminates when oil pressure drops below the safe operating threshold. At cold start on a healthy engine it may flicker for one or two seconds; if it stays on at normal RPM, shut down and check the oil level before doing anything else. Running even briefly with confirmed low pressure can score main and rod bearings. The coolant temperature lamp works in tandem with the temperature gauge; if the gauge needle climbs into the red arc and the lamp fires, the engine is overheating. Park the tractor safely, shut off the engine, and wait at least 15 minutes before opening the cooling system.

The battery charge lamp (a battery icon on most Kioti models, or an alternator symbol on older CK units) turns on when the alternator is not producing sufficient charge voltage. You typically have 20-30 minutes of operating time on battery reserves before the system voltage drops enough to affect running. Head in and check belt tension first; a slipping or broken alternator belt is the most common cause.

Kioti's diesel engines across the CK20S through the larger DK and RX series all use glow plugs for cold-start pre-heating. When you turn the ignition key to the 'run' position (without cranking), the glow plug lamp - a coiled wire element symbol - illuminates. Wait for it to go out before cranking. The wait time ranges from about 5 seconds in warm weather to 15-20 seconds in near-freezing temperatures.

Starting before the lamp extinguishes is one of the most common causes of white smoke on a cold Kioti engine. The plugs have not had time to heat the pre-combustion chambers, so the first few combustion events produce unburned fuel mist. On the CK series especially, which uses smaller-displacement three-cylinder diesels, skipping the preheat cycle repeatedly accelerates plug electrode wear.

If the glow plug lamp stays on after the engine has started and warmed up, that is a different fault condition. On DK and NX models with an ECU, a persistent glow lamp at operating temperature usually indicates a failed plug element, a fault in the glow control relay, or an ECU-detected pre-heat circuit error. If paired with a check engine lamp, have the fault codes read. Mahindra's glow plug system uses the same start sequence logic and the same failure patterns.

Kioti's amber lamps are service reminders rather than stop-now commands, but they should not be carried over into multiple work days. The most common amber indicators fall into three groups: fuel system, air intake, and lubrication intervals.

The water-in-fuel lamp is triggered by a float sensor at the base of the primary fuel filter bowl. Water is lighter than diesel and floats on top; the sensor fires when enough accumulates to risk entering the injection system. To reset: locate the petcock or drain plug at the bottom of the filter housing, open it slowly until clean diesel flows, then close it. If the lamp returns after a short time, the fuel supply itself is contaminated - drain the tank and refuel from a clean source.

The fuel filter lamp (where fitted separately from the water sensor) indicates that the filter element is approaching the end of its service life or that restriction has exceeded the threshold. On the DK series and larger NX models this is a timed-service reminder tied to the hour meter rather than a restriction sensor. Standard filter change interval is 200-250 hours; replace the element and the lamp will reset automatically or after a brief key cycle.

The air filter restriction lamp uses a restriction sensor on the intake manifold or air cleaner housing. A clogged filter causes rich combustion, black smoke under load, and elevated exhaust temperatures. On turbocharged Kioti models in the DK series and above, a severely restricted filter can cause turbocharger surge and accelerated compressor wear. Service the filter as soon as the lamp appears - do not delay to the end of the working day if there is heavy dust.

For broader context on how Korean-origin compact tractor brands handle service intervals, the Kubota instrument cluster follows similar amber-lamp logic, making it a useful cross-reference for multi-brand fleets.

Kioti's hydraulic circuit serves the three-point hitch, front loader (if fitted), and power steering on some models. The hydraulic oil warning lamp monitors both fluid level and, on larger series, circuit temperature. If this lamp fires with a cold tractor at startup, the most likely cause is low fluid level in the hydraulic reservoir. Check the sight glass or dipstick on the transmission case - Kioti uses a shared wet-brake and hydraulic sump design on most models, so the fluid serves multiple functions simultaneously.

Hydraulic oil temperature lamps are more common on the DK902 and RX series when extended loader work is performed in high ambient temperatures. If the temperature lamp fires during loader operation, park the tractor, lower the loader to the ground, and allow the system to idle for 5-10 minutes. Running the circuit with hot oil accelerates seal wear and reduces lift capacity. A related issue covered in detail for comparable equipment: Case skid steer hydraulic oil warning lights follow the same fluid-temperature logic.

These green lamps confirm that a drive system is engaged, not that something is wrong. They are among the most safety-relevant indicators on the tractor despite being status lights rather than warnings.

The PTO engaged lamp glows whenever the power take-off shaft is spinning. Before dismounting the tractor or approaching any rear-mounted implement, confirm this lamp is off. On Kioti's ROPS models, an operator presence switch will cut PTO power if the seat is vacated without engaging the park brake, but the lamp going dark is the confirmation to trust. Some CK series models also have a cruise/PTO interlocked warning that fires amber if you attempt to engage cruise control with the PTO running - a safety interlock condition rather than a fault.

The four-wheel-drive indicator confirms that the front axle is locked in four-wheel drive. Engage 4WD for traction in soft ground or on slopes; disengage on hard surfaces and when making tight headland turns to prevent drivetrain bind. On Kioti's mechanical front axle systems, the engagement lamp going off unexpectedly (without the operator disengaging the lever) can signal a worn front axle engagement fork or shift rail - worth investigating before it becomes a field breakdown.

The differential lock lamp glows green when the rear axle differential is mechanically locked. This is standard on DK, RX, and NX series models. Disengage before turning at the headland; a locked differential on a tight turn loads the final drive components hard and can snap a half-shaft on compact models. See also: Kioti CK3510 specific indicator lights for a model-level breakdown of the CK compact range, and Kioti error codes when electronic fault codes accompany the warning lamps.

Kioti's electronically controlled engines - standard on the DK series and across the NX and RX ranges - include a check engine lamp (MIL) that stores fault codes in the ECU. A steady MIL with no noticeable performance change can indicate a sensor fault or emissions issue; a flashing MIL during operation is more urgent and usually indicates a misfire or fuel delivery fault that should cause you to reduce load and head in immediately.

On North American models that meet Tier 4 Final emissions standards, a DPF regeneration lamp is fitted. This lamp indicates that the diesel particulate filter is regenerating. During an active regen, exhaust temperatures behind the muffler can be high enough to ignite dry grass or debris. Do not park near combustible materials during a regen cycle. If the DPF lamp stays on permanently and the tractor enters a reduced-power (limp) mode, a forced regen via a dealer's diagnostic tool is likely needed. This is not a DIY reset on most Kioti models - the dealer procedure involves several steps to confirm the filter is at the correct temperature before initiating the burn cycle.

The transmission temperature lamp (amber, on DK and larger models) fires when the HST or gear-drive transmission oil runs hot, usually from extended hillside work or prolonged use at low ground speeds under heavy draft loads. Allow the tractor to idle for 5-10 minutes with no load to cool the oil before resuming work.

Most mid-range and larger Kioti models display engine hours on the main instrument cluster, and some DK and NX models have a service interval lamp that fires at preset hour thresholds (typically 50-hour oil change, 200-hour filter service). The lamp resets either automatically after a key cycle following a service, or through a button sequence detailed in the operator manual.

Kioti's recommended oil change interval for the CK and DK series is every 50 hours or annually, whichever comes first. On Tier 4 DK models running DPF systems, using the correct low-ash diesel engine oil is critical - high-ash oil contributes to accelerated DPF loading. The operator manual specifies the oil grade by series and ambient temperature range.
